When To Use Concentric And Eccentric Reducers

In pipeline fluid systems, it is very important to choose the right stainless steel concentric and eccentric reducers. Because its will make sure that the system is efficient, durable and reliable. Whether you are planning a piping system installation or working as a technician on a chemical piping project, you are must understanding the difference between stainless steel concentric and eccentric reducers，its will help you save time, money, and future problems. Let’s look at this important topic in a clear way.

1. What is a Concentric Reducer?

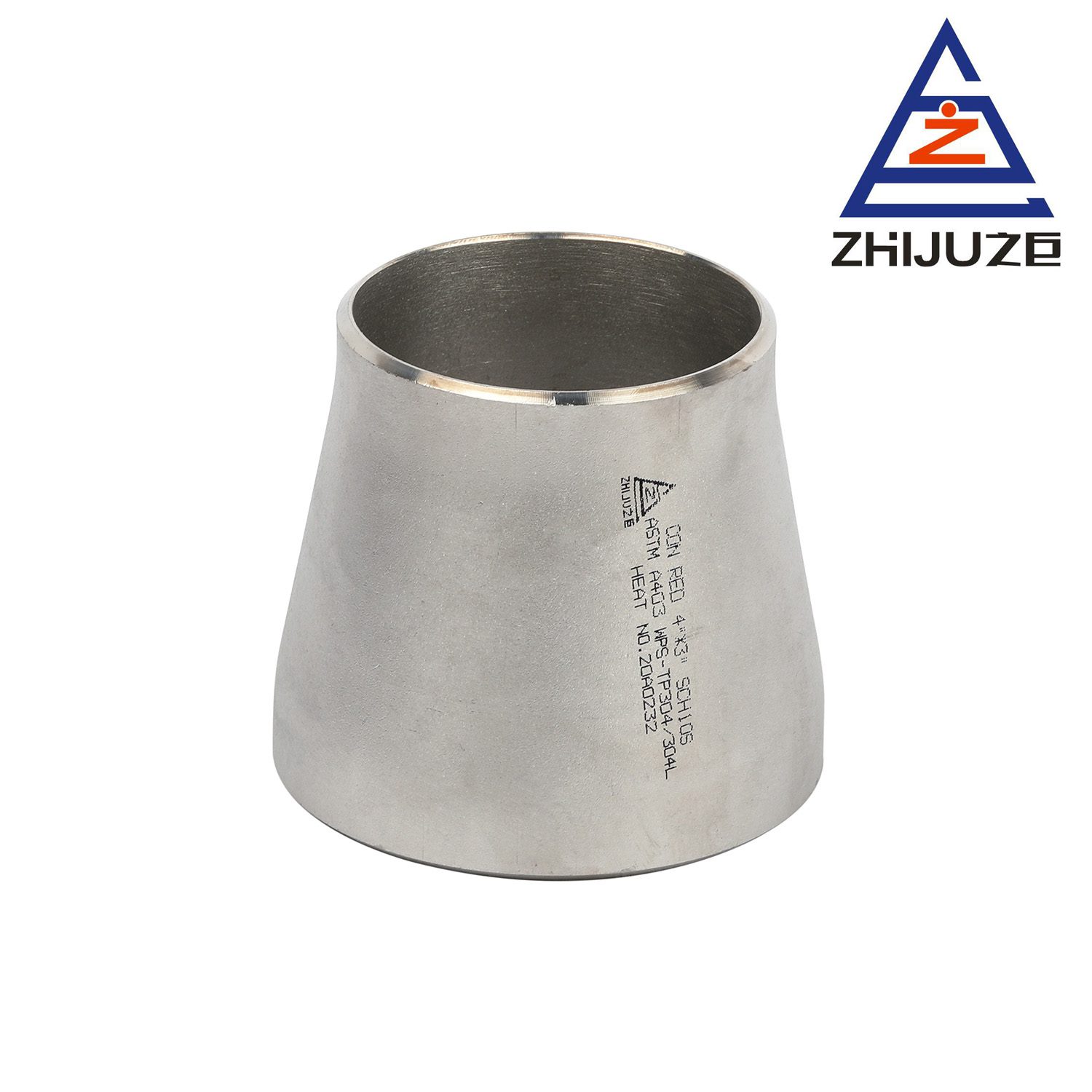

A concentric reducer is a type of fitting that smoothly joins two pipes of different sizes so that they are at the same level. Imagine a conical reducer fitting where the size is reduced evenly around the middle axis. Stainless steel concentric reducers are particularly popular because they help to make sure that the liquid flows evenly, which makes them perfect for use in vertical pipelines and liquid transport systems.

Typically, concentric reducers are used in situations where cavitation prevention is important, such as at a pump inlet reducer. Their symmetrical shape helps in ducting reducers, pipe diameter change applications, and overall fluid flow optimization. Stainless steel reducers, especially in butt-welded reducers and threaded reducers formats, offer excellent corrosion resistance and mechanical strength.

2. What is an Eccentric Reducer?

An eccentric reducer differs in one key way: one side of the fitting is flat while the other tapers. This design shifts the centerline between the connecting pipes. Stainless Steel Eccentric Reducers are vital for horizontal pipelines, particularly where fluid or gas flow needs precise control to avoid pockets and stagnation.

In oil and sludge pipelines, hydraulic system reducers, and pipeline clogging prevention projects, eccentric reducers ensure that liquids can drain properly, and gases do not accumulate. Whether it’s a bottom-level eccentric installation for liquids or a top-level eccentric installation for gases, using the correct eccentric fitting is essential for maintaining safe and efficient flow.

3. Difference Between Concentric and Eccentric Reducers

Understanding the nuances between concentric and eccentric reducers is essential for effective pipeline design.

3.1 Structural Difference

• Concentric Reducer: Symmetrical conical shape. Both pipe centerlines align perfectly.
• Eccentric Reducer: Asymmetrical design. One side is flat, and the centerlines are offset.

This difference affects not just the appearance but also the function and placement of the fitting.

3.2 Functional Difference

• Concentric Reducer: Ideal for vertical pipeline installation where even flow distribution is critical. Commonly used in pipe fittings for ducting system installations and liquid transport systems.
• Eccentric Reducer: Suited for horizontal pipeline installation where avoiding air pockets is vital. These fittings are often deployed in chemical piping systems and oil transport lines.

3.3 Impact on Fluid Flow Difference

• Concentric Reducer: Maintains a smooth, balanced flow with minimal turbulence. Perfect for pipe flow control and cavitation prevention.
• Eccentric Reducer: Helps fluids drain without pooling and prevents air traps. Essential for maintaining proper fluid dynamics in horizontal piping.

3.4 Usage in Pipeline Systems Difference

• Vertical Pipelines: Stainless Steel Concentric Reducers ensure a consistent centerline and symmetrical fluid distribution.
• Horizontal Pipelines: Stainless Steel Eccentric Reducers maintain level alignment, prevent pipeline clogging, and ensure impurities drainage.
• Pipeline Systems: Both types are critical, depending on the layout and fluid properties involved.
• Specific Applications: Con reducers and eccentric couplings are chosen based on whether the system transports liquid, gas, or sludge.

4. Concentric vs Eccentric Reducers: When to Use

Choosing between a concentric and an eccentric stainless steel pipe reducer is not just about matching pipe sizes. It’s about protecting system efficiency, preventing failures, and extending operational life.

Let’s break down when each type is the right choice.

4.1 When to Use a Concentric Reducer

• For vertical piping systems

  In vertical pipelines, fluid moves under gravity or pump pressure. A concentric reducer keeps the flow centered and balanced. This helps maintain even velocity, minimizing turbulence and pressure loss.

• Where centerline alignment is crucial

  Applications like ducting system installation in towers, chemical plants, or water treatment facilities need pipes perfectly aligned. A Stainless Steel Concentric Reducer ensures that both pipes stay on the same centerline, simplifying pipe installation and support design.

• At pump inlets requiring symmetrical flow

  Pumps perform best when fluid enters uniformly across the impeller. A concentric reducer avoids flow disturbances, reducing the risk of cavitation, vibration, and premature pump wear. For critical systems, such as liquid transport systems or hydraulic setups, this is essential.

• When air accumulation is not a significant concern

  In vertical piping or in systems carrying only liquids, air pockets are rare. In these cases, maintaining symmetry and smooth fluid flow matters more than worrying about air buildup.

Summary:
Use a Stainless Steel Concentric Reducer when you need smooth, centered, and reliable fluid transitions in vertical or pump-fed systems. They are especially important where cavitation prevention and pipe flow control are priorities.

4.2 When to Use an Eccentric Reducer

• For horizontal piping systems

  In horizontal pipelines, fluid doesn’t naturally drain away from high points. A Stainless Steel Eccentric Reducer ensures that either the top or bottom of the pipe stays flat, allowing gas or liquid to flow without getting trapped.

• When preventing air pockets at the top of the pipeline (gas service)

  In gas lines, air entrapment can cause flow restrictions or dangerous surges. A top-level eccentric installation lets trapped air escape smoothly, maintaining stable gas flow and preventing pressure build-up.

• When facilitating complete drainage at the bottom of the pipeline (liquid service)

  In pipelines carrying liquids, especially in chemical piping systems and oil and sludge pipelines, any stagnation can cause contamination or corrosion. Installing the eccentric reducer bottom-flat ensures that the liquid drains completely, reducing maintenance and downtime.

• Where maintaining top or bottom level alignment is critical for fluid control

  Horizontal pipelines that connect to tanks, pumps, or processing equipment often need a specific elevation maintained. A Stainless Steel Eccentric Reducer preserves this alignment, ensuring optimal fluid flow and system reliability.

Summary:
Use a Stainless Steel Eccentric Reducer whenever you’re dealing with horizontal pipelines. It’s essential for avoiding air locks, ensuring proper drainage, and optimizing long-term fluid dynamics.

5. Conclusion

When you’re working on a serious pipeline system, it’s really important to choose the right stainless steel reducer. This could be stainless steel concentric and eccentric reducers. Knowing the differences in structure, function, and flow helps engineers and technical buyers make the right decisions to get the best performance from the system.

Stainless steel concentric reducers are the best solution for vertical pipelines or pump installations. They help to keep the centre line in line and make sure the flow is balanced. Stainless steel eccentric reducers are perfect for horizontal pipelines. They are great for dealing with air pockets and drainage because they are precise and functional.

Using con and ecc reducers correctly will make sure your pipeline systems are efficient, reliable and long-lasting. This includes things like changing pipe diameter, optimising fluid flow and using ducting reducers and hydraulic system reducers. When choosing from options like butt-welded reducers, PVC reducers, welded reducers, or threaded reducers, always consider your project’s fluid type, pipeline orientation, and system goals.

For the best results, choose high-quality stainless steel pipe reducers and invest in the right fittings, because every detail matters when building resilient and high-performance pipeline systems.
